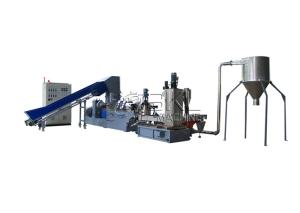

150-250kg / H PP PE Film LDPE Plastic Film Plastic Granulating Line
Description:
PP PE Film LDPE Plastic Film Plastic Granulating Line is equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.
We have different output for PP PE Film LDPE Plastic Film Plastic Granulating Line , 60-100kg/h,100-150kg/h,150-250kg/h,250-350kg/h.400-550kg/h,600-750kg/h,800-1000kg/h.
Single stage extruder is normally designed for good cleanliness and low moisture material,such as leftover material from the film/bag production line, printed films ect.
Working Flow of PP PE Film LDPE Plastic Film Plastic Granulating Line:
Belt conveyor → Cutter compactor(agglomerator) → Efficient extruder → Hydraulic screen filter changer → Water ring cutting pelletizing → Vibration machine → Dewatering machine → Blower → Storage hopper → Electric control panel
Technical parameters for PP PE Film LDPE Plastic Film Plastic Granulating Line:
| Series | Model | Screw Diameter(mm) | L/D | Capacity (kg/h) |
| ML | SJ65 | 65 | 33:1 | 60-100 |
| SJ85 | 85 | 33~36:1 | 100~250 |
| SJ100 | 100 | 33~36:1 | 200-350 |
| SJ130 | 130 | 33~36:1 | 400-600 |
| SJ160 | 160 | 33~36:1 | 650-800 |
| SJ180 | 180 | 33~36:1 | 700-1000
|
Feature:
- Intergrated cutting compactor make the recycling line in compact structure which requires less labor than normal recycling line.
- Increase feeding efficiency for light materials like film,raffia,filament,forming materials ect.
- High output and low energy consumption.
- Configuration based on client requirement and material, and give reasonable suggest.
